Pinecone Redwood Industrial Coffee Grinder

Pinecone Redwood — Industrial Production Grinding

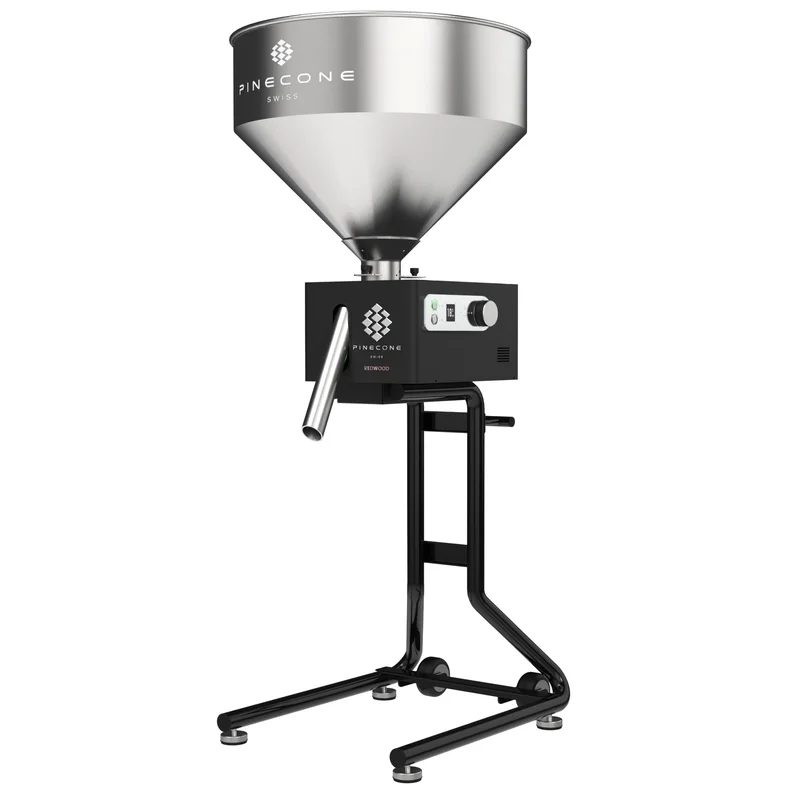

The Redwood is Pinecone's industrial-grade coffee grinder, engineered for high-volume capsule production and packaging operations. Its 120mm flat-disc burr platform delivers a sustained 3 kg per minute (6.6 lbs/min) throughput, supported by a massive 30 kg hopper that minimises refill interruptions during extended production runs.

RS485 remote control enables integration into automated production lines, while digital micrometric calibration provides precise, repeatable grind setting adjustments without manual dial guesswork. Single-phase power simplifies installation in standard industrial facilities.

The Redwood is the solution for coffee businesses scaling into capsule filling, retail packaging, or large-batch wholesale grinding where consistency, throughput, and remote control are non-negotiable.

Key Features

• 120mm flat-disc burrs
• 3 kg/min throughput
• 30 kg hopper capacity
• RS485 remote control for production line integration
• Digital micrometric calibration
• Single-phase power

Specifications

Spec	Detail
Burr Size	120mm flat-disc
Throughput	3 kg/min (6.6 lbs/min)
Hopper Capacity	30 kg
Power	Single-phase
Control	RS485 remote
Calibration	Digital micrometric by-wire
